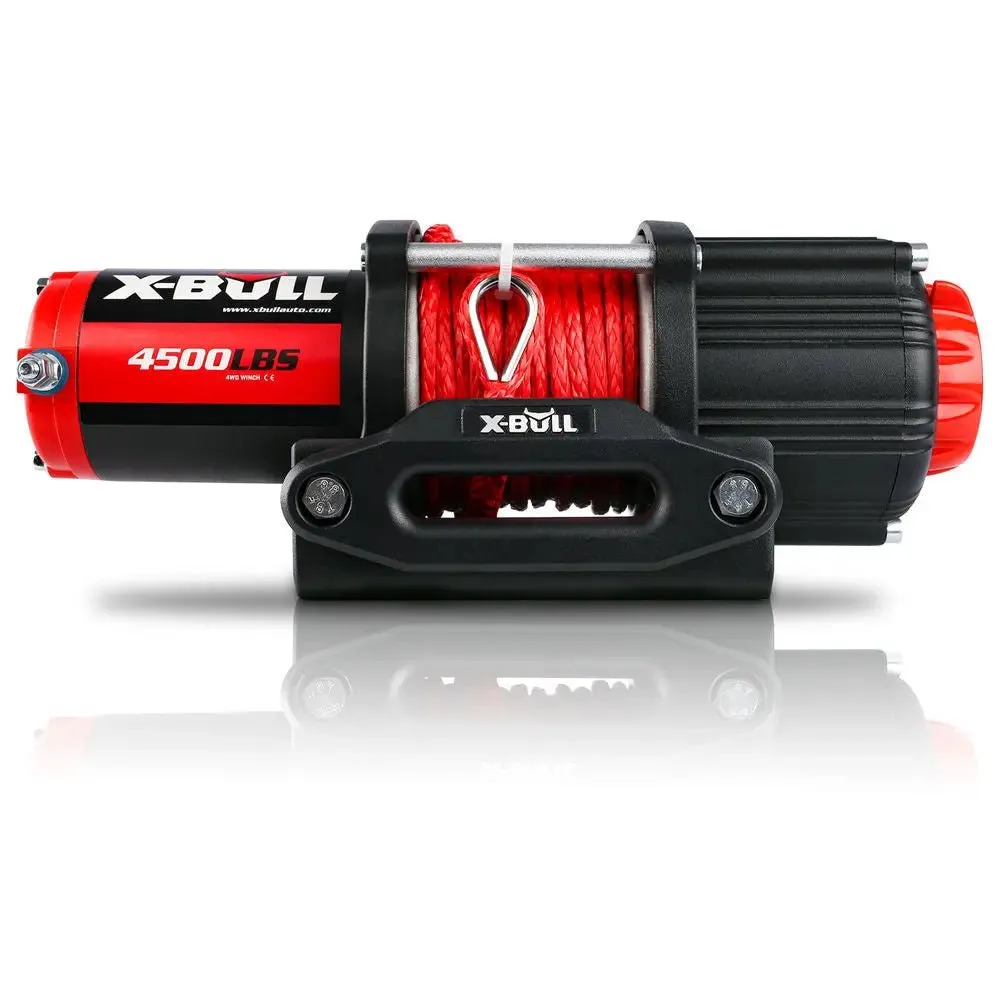

The X-BULL 4500 LBS is one of our new X-BULL high-efficiency winches for all off-road and life-loving customers in 2021. Over the past few years, we document the product issues, needs and recommendations that our customers focus on, and have overcome and implemented it one by one.

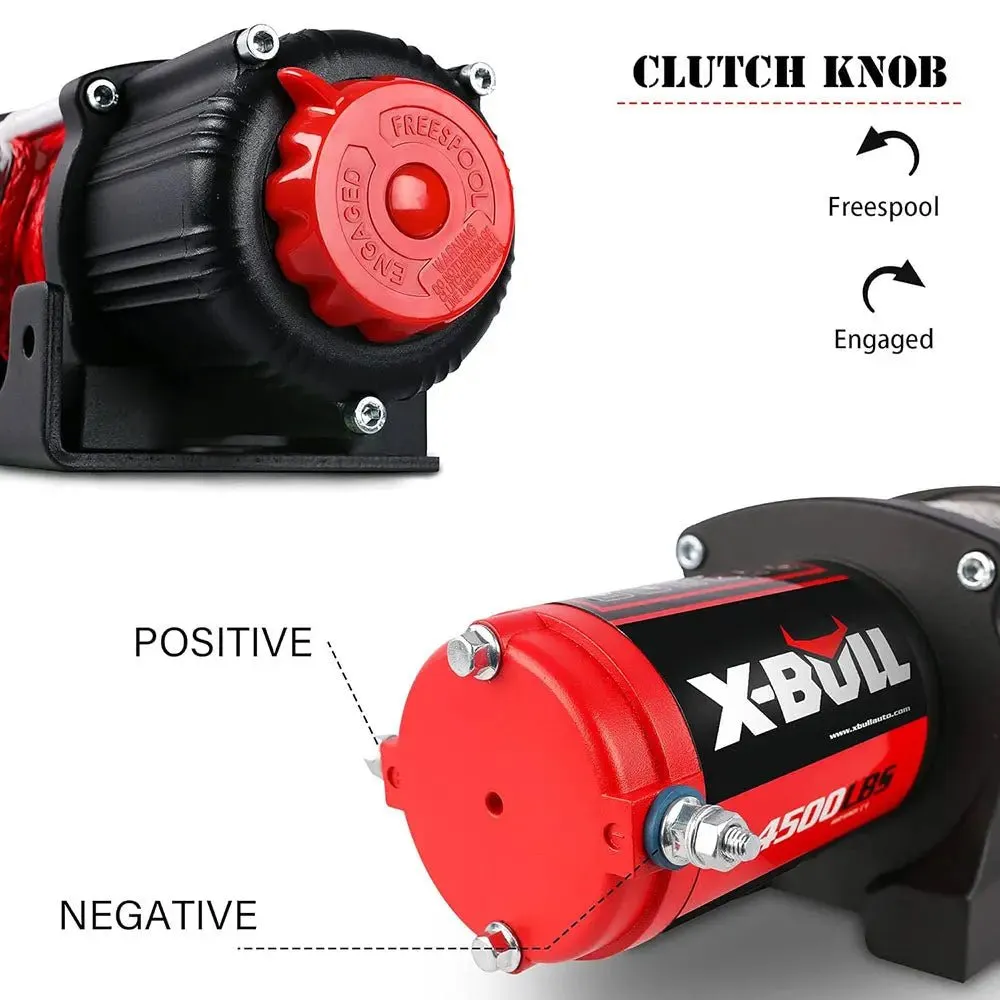

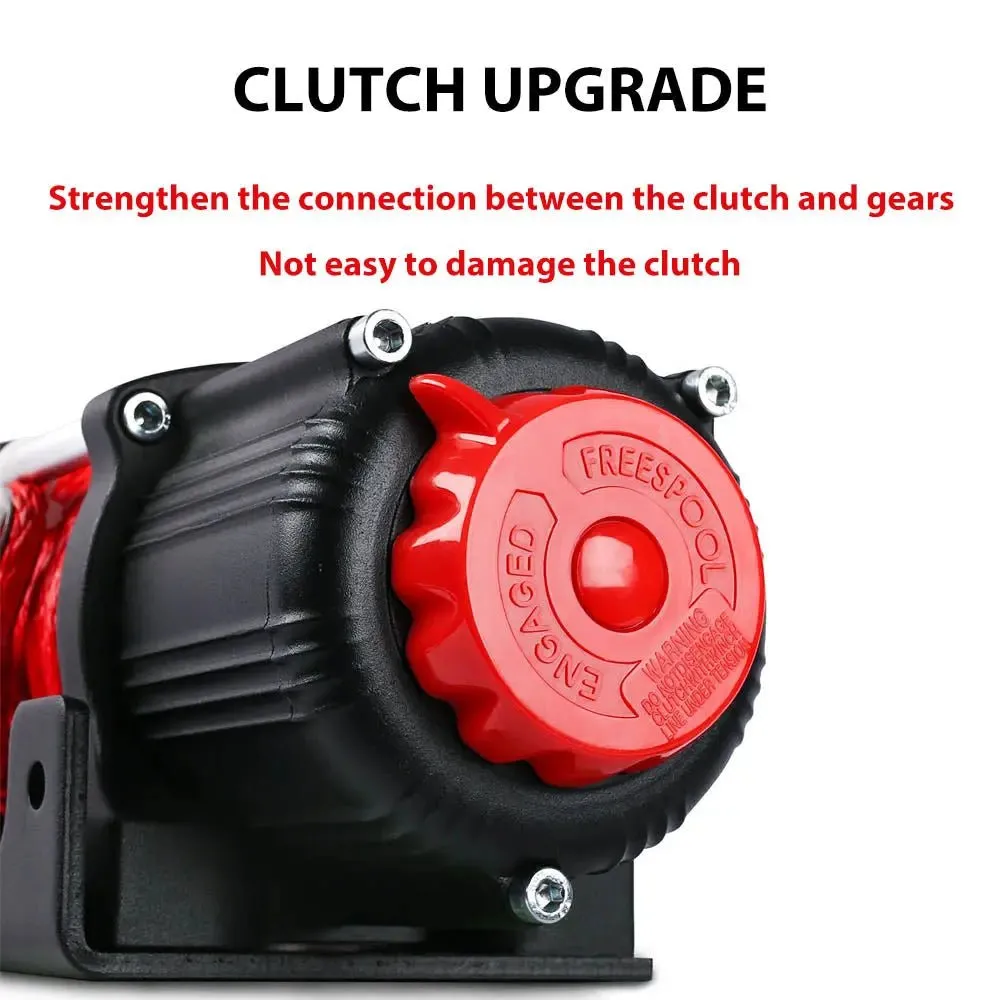

We consolidate gearboxes, update ergonomic clutches, and upgrade remote controls, which make our customers more comfortable with their use. X-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.

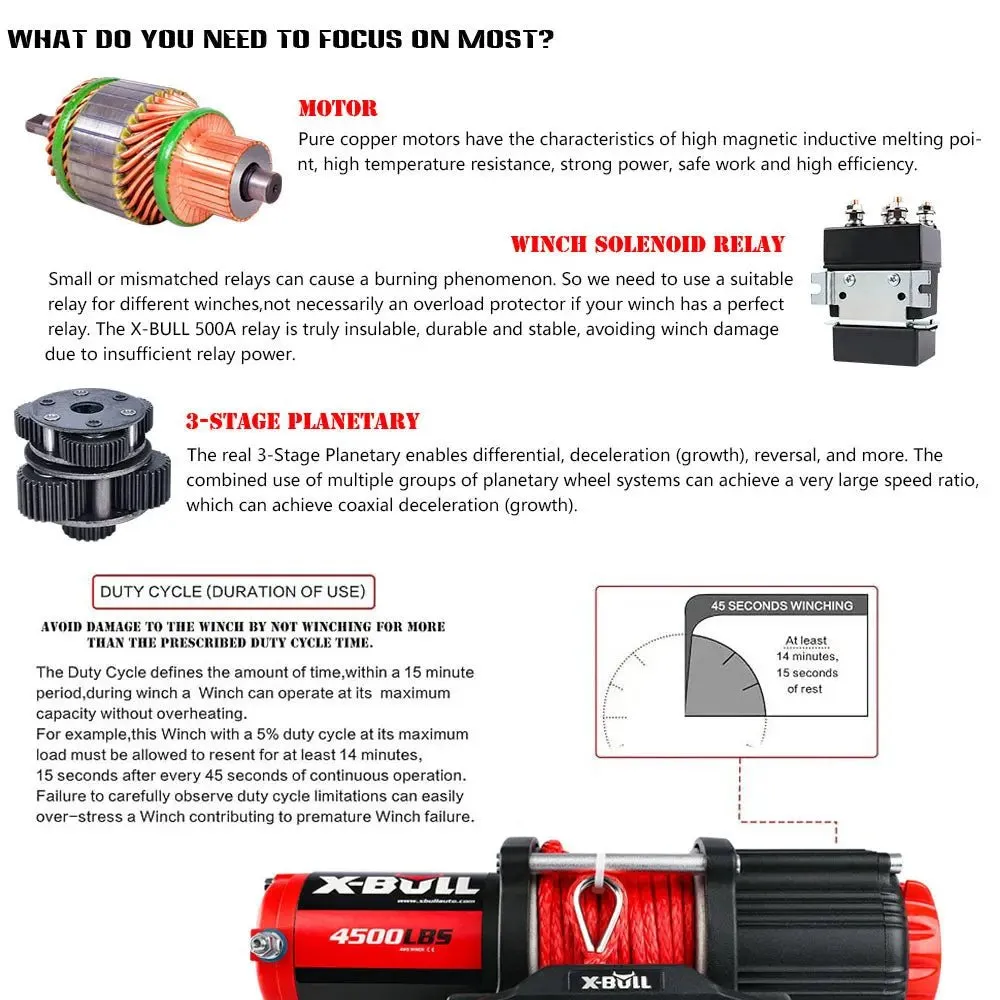

- PERMANENT MAGNET PURE COPPER MOTOR: It's a larger more powerful motor that delivers 1.5 horsepower, 3.2 feet protect sleeve; 1/4 inches x 50 feet synthetic rope; heavy duty construction, so you can maximize your work date

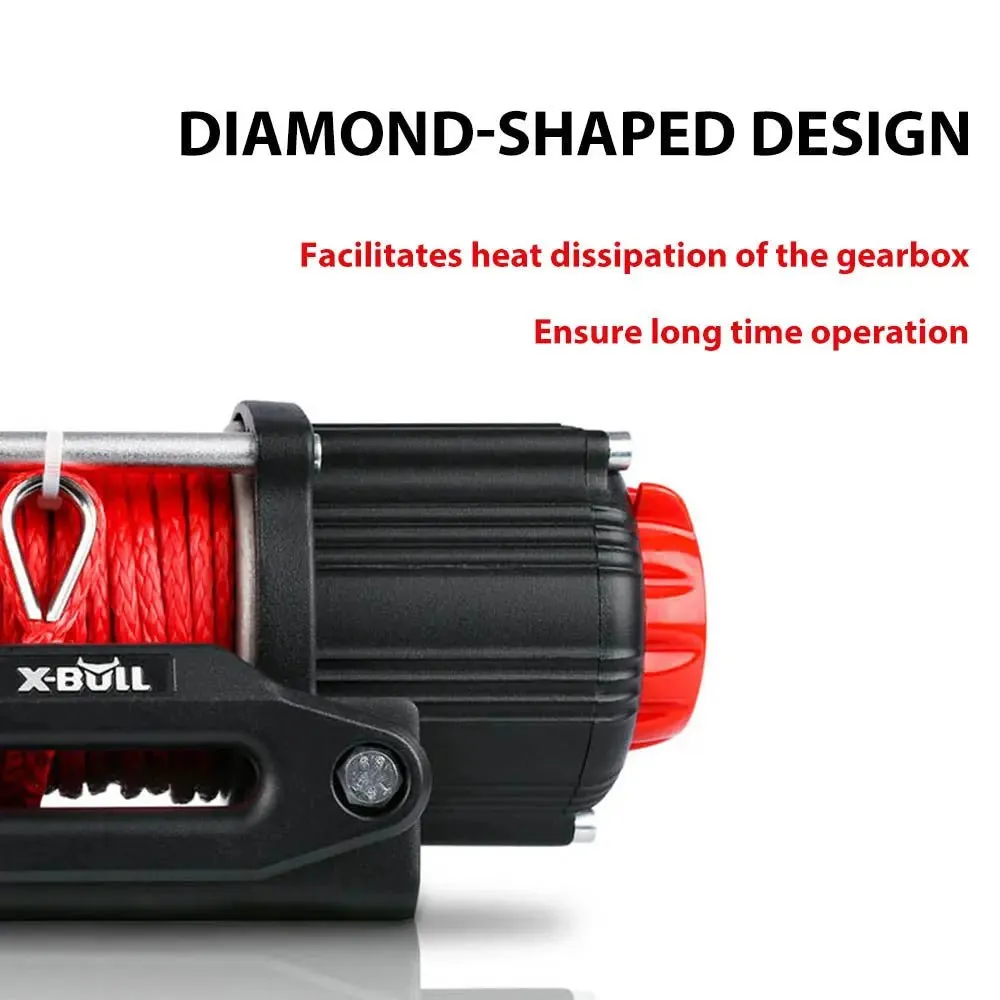

- GEAR SYSTEM: The impressive three-stage planetary gear system rises to the task with 4500 pounds capacity. 136:1 gear ratio, low vibration, a dynamic brake holding mechanism keeps your vehicle securely in place when you farm feed

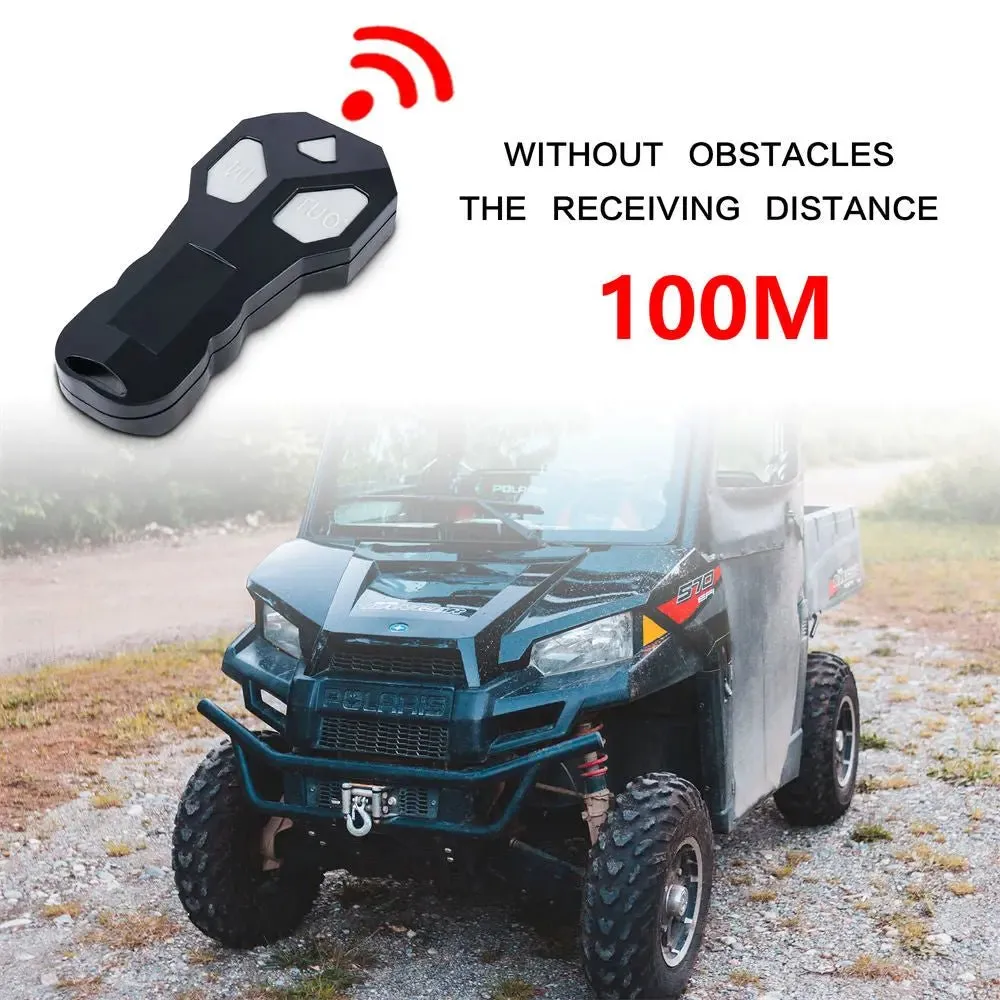

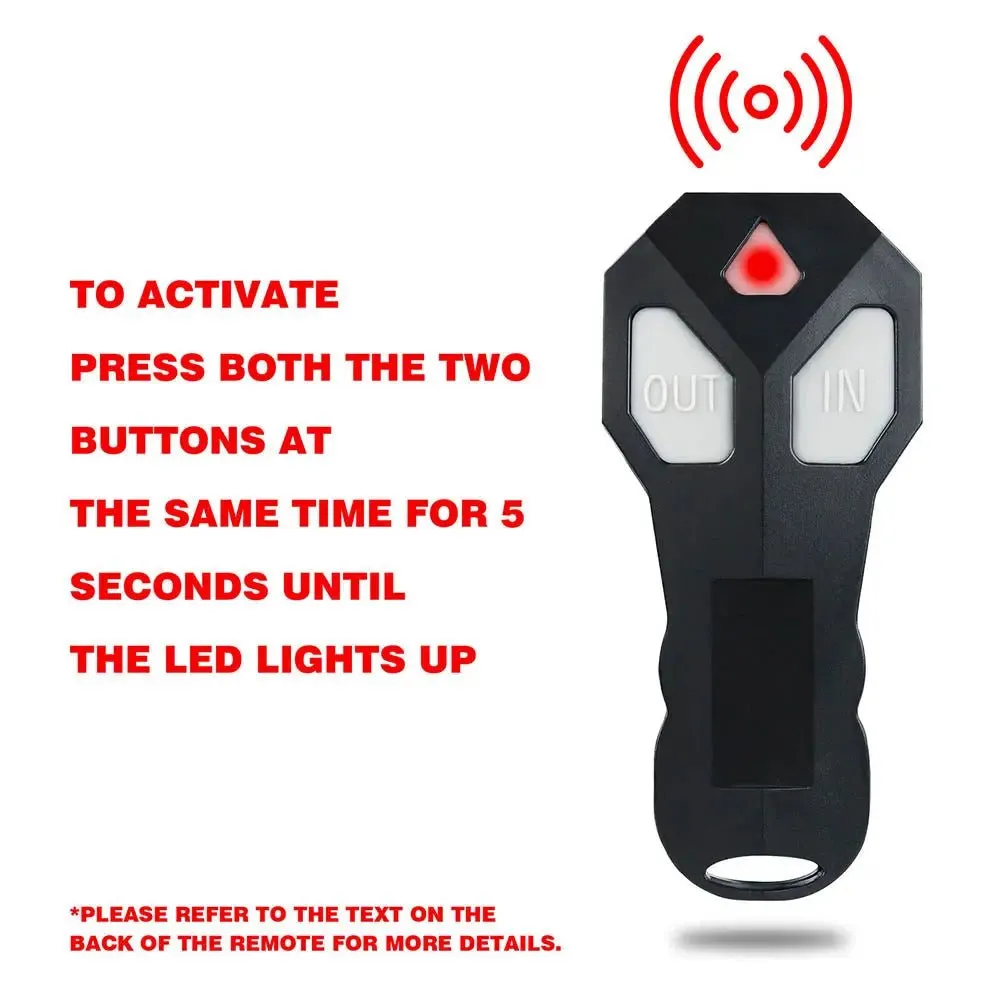

- ELECTRIC WINCH: Includes a wireless remote control and handlebar mini rocker switch; a better companion on worksites, hunting trips, in agribusiness, or anywhere you need it gets the job done right
- INSTALLATION DIMENSIONS: The powder coated workmanship on exterior of winch, with IP66 waterproof; the anti-corrosion mounting hardware; 3 x 4.8 inches bolt pattern; a 5.9 x 5.1 x 4.9 inches bracket, can be easily installed on your cargo box
- APPLICABILITY: From snow plowing, outdoors hunting to stacking wood, towing equipment, there's an endless list of accessories to your winch; You can add the winch for wildcat, prowler, maverick, commander, defender, ranegade, outlander, rzr, ranger, general, sportsman, pioneer, talon, sxs, teryx, mule
SPECIFICATIONS
| Rated Line Pull | 4500 lbs (2041 kg) |
| Motor | 1.5 HP Permanent Magnet, Pure Copper |
| Gear Train | 3-Stage Planetary |
| Gear Reduction Ratio | 136:1 |
| Brake | Auto. Load Holding Mechanical |
| Control | Wireless Remote Control Wire Remote Control |
| Battery | 12V DC, Minimum 12Ah |

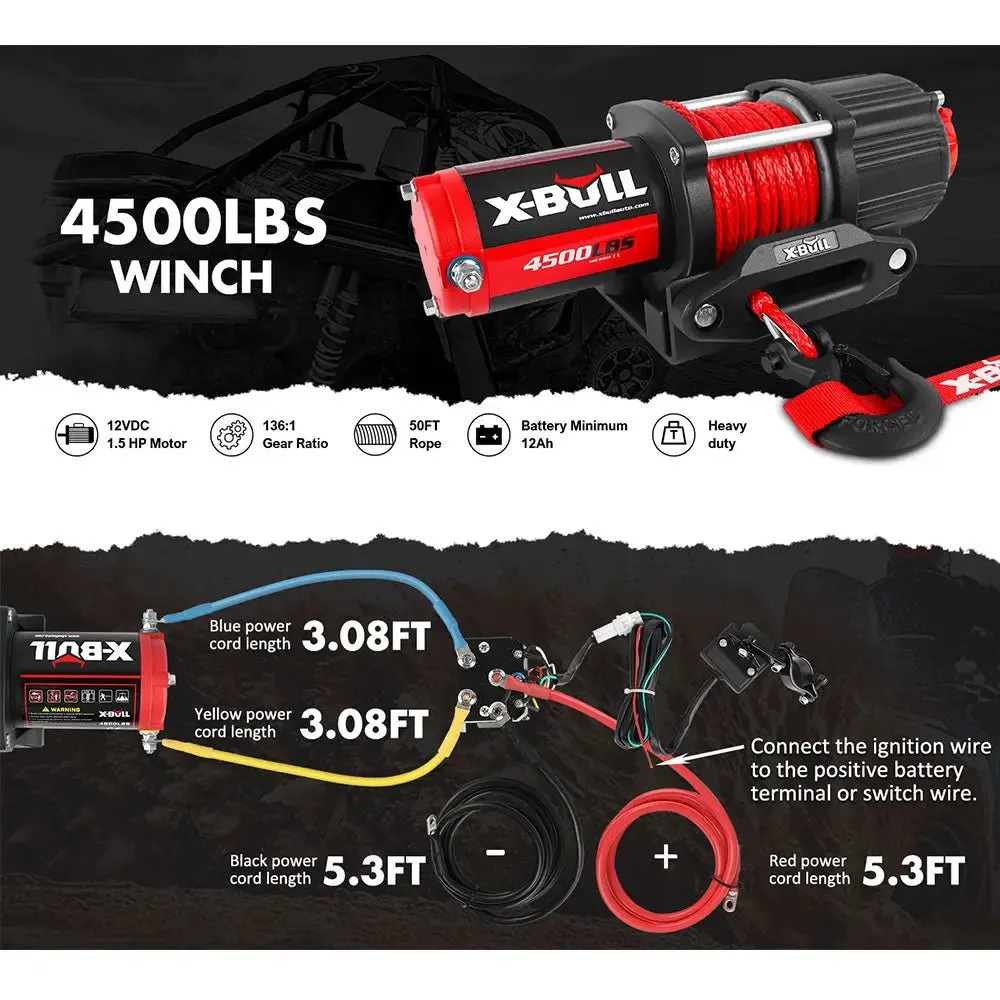

| Battery Cables | 6 Gauge, 6' (1.83 m) |
| Solenoid Cables | 6 Gauge, 3' (0.92 m) |

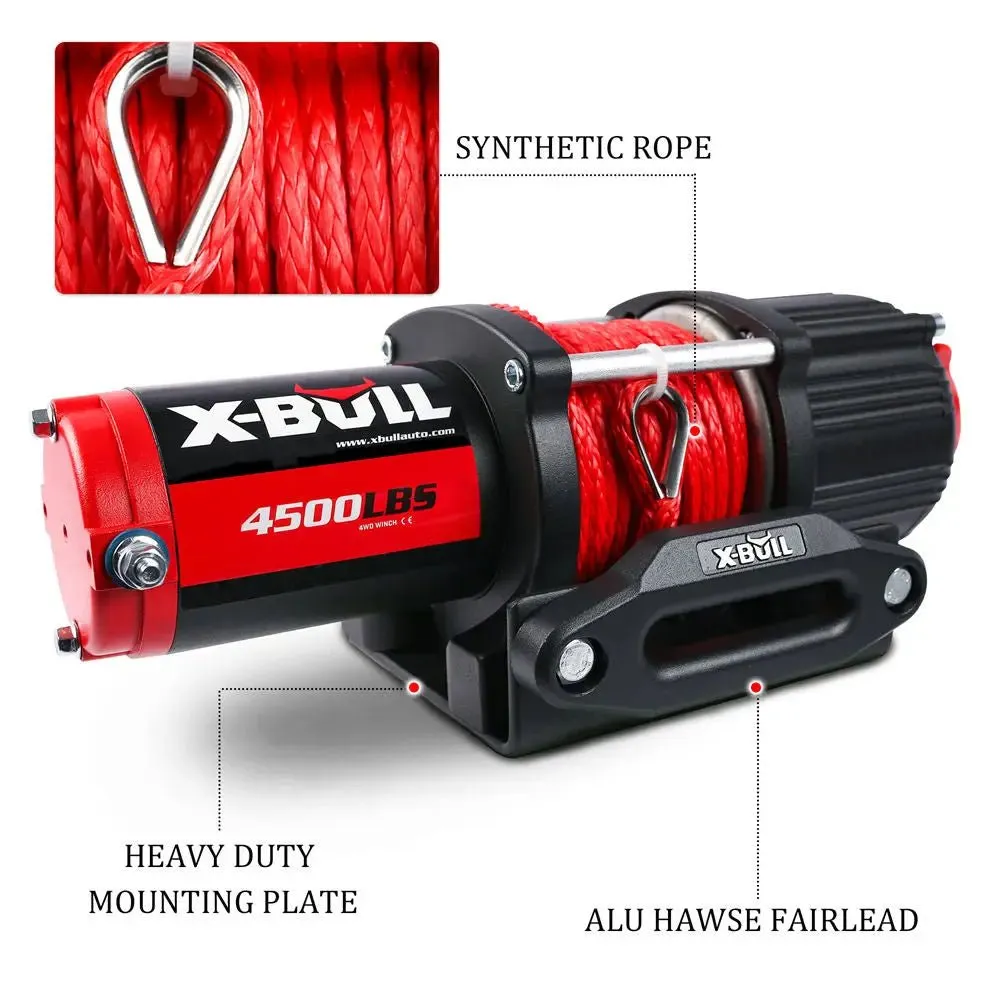

| Fairlead | Aluminium Hawse Fairlead |
| Cable Type | Synthetic Rope |

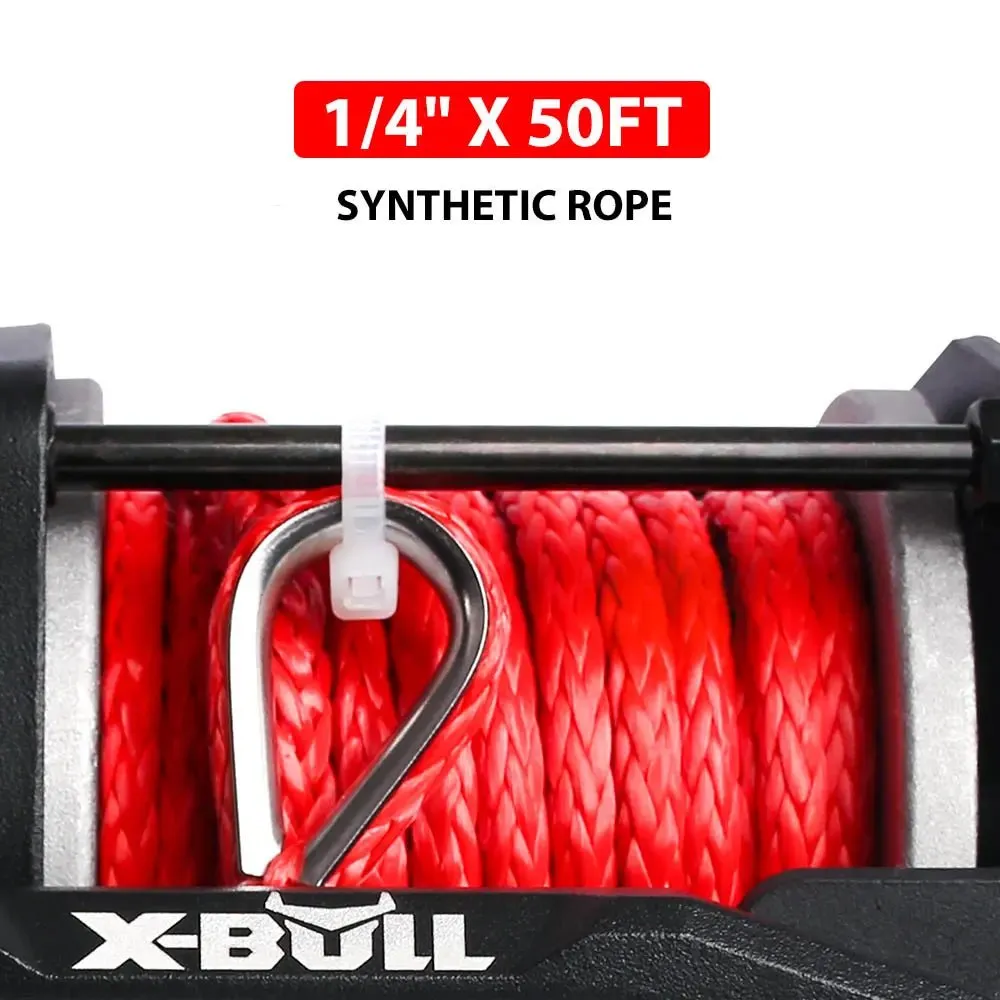

| Cable Size (D x L) | 1/4" X 50' (6.3 mm X 15.2 m) |

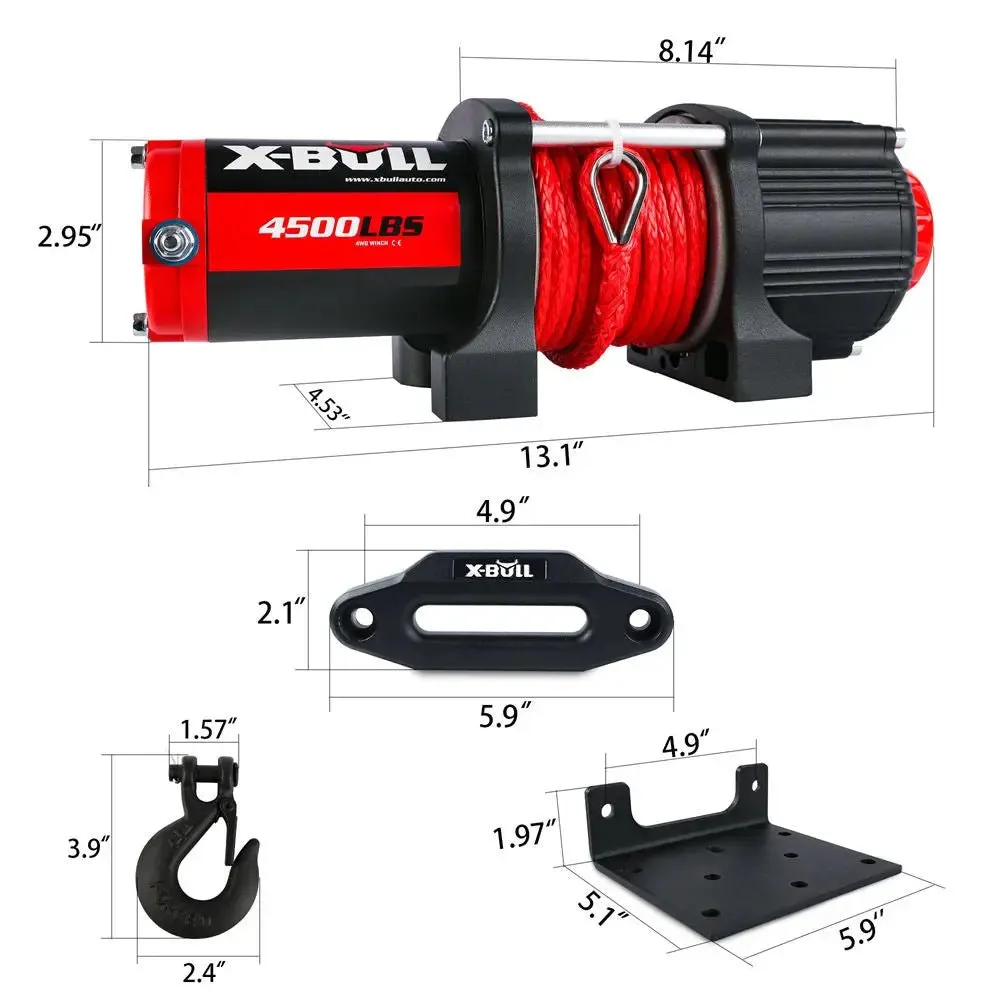

| Overall Dimensions (L x W x H) | 15.8" X 4.6" X 4.7" (400 mm X 116 mm X 119 mm) |
| Drum Size (D x L) | 2" X 4.7" (50 mm X 120 mm) |
| Bolt Pattern | 3" X 4.8" (76.2 mm X 122 mm) |
| Weight | 21.60 lbs (9.80 kg) |
| Waterproof Rating | IP66 |
| Line Speed (Max Line Pull) | 7.5 fpm (2.3 mpm) |
| Amp Draw (Max Line Pull) | 260 (@ 12V) |
| Application | Utility/Trailer/ATV/UTV/BOAT |

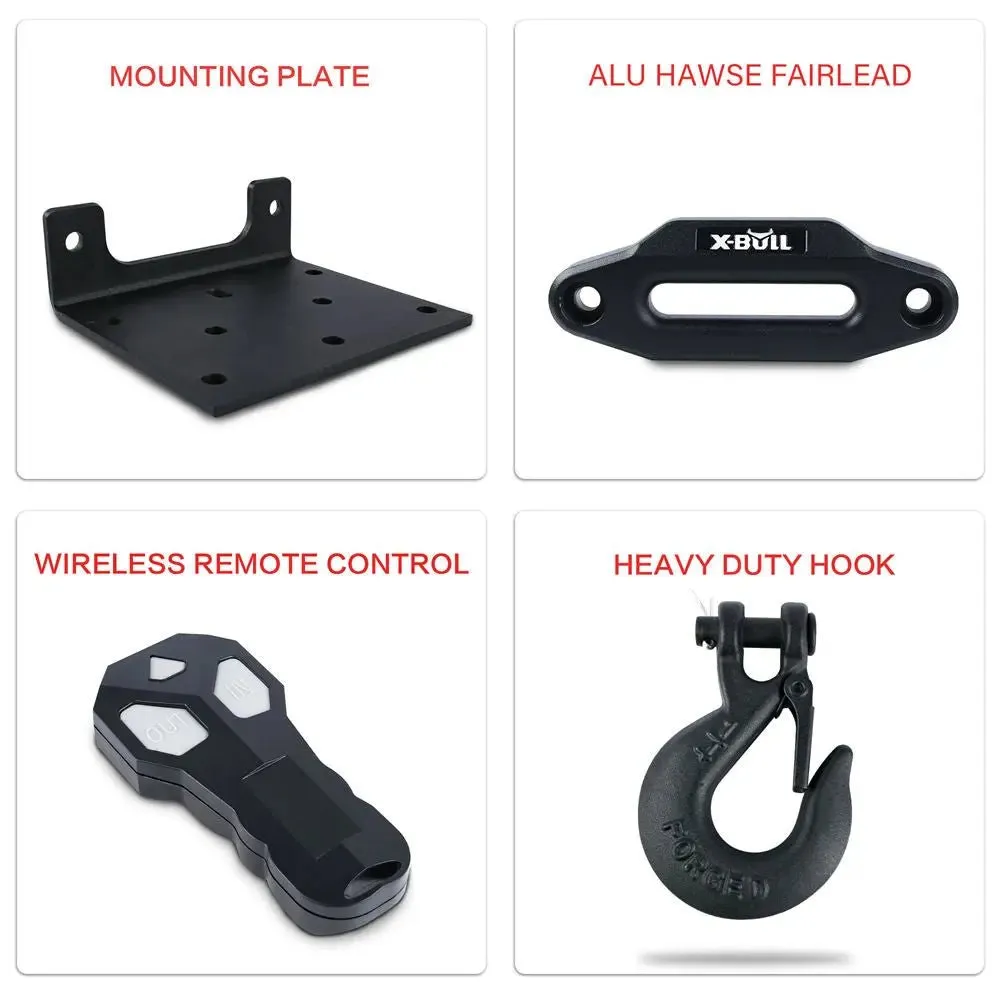

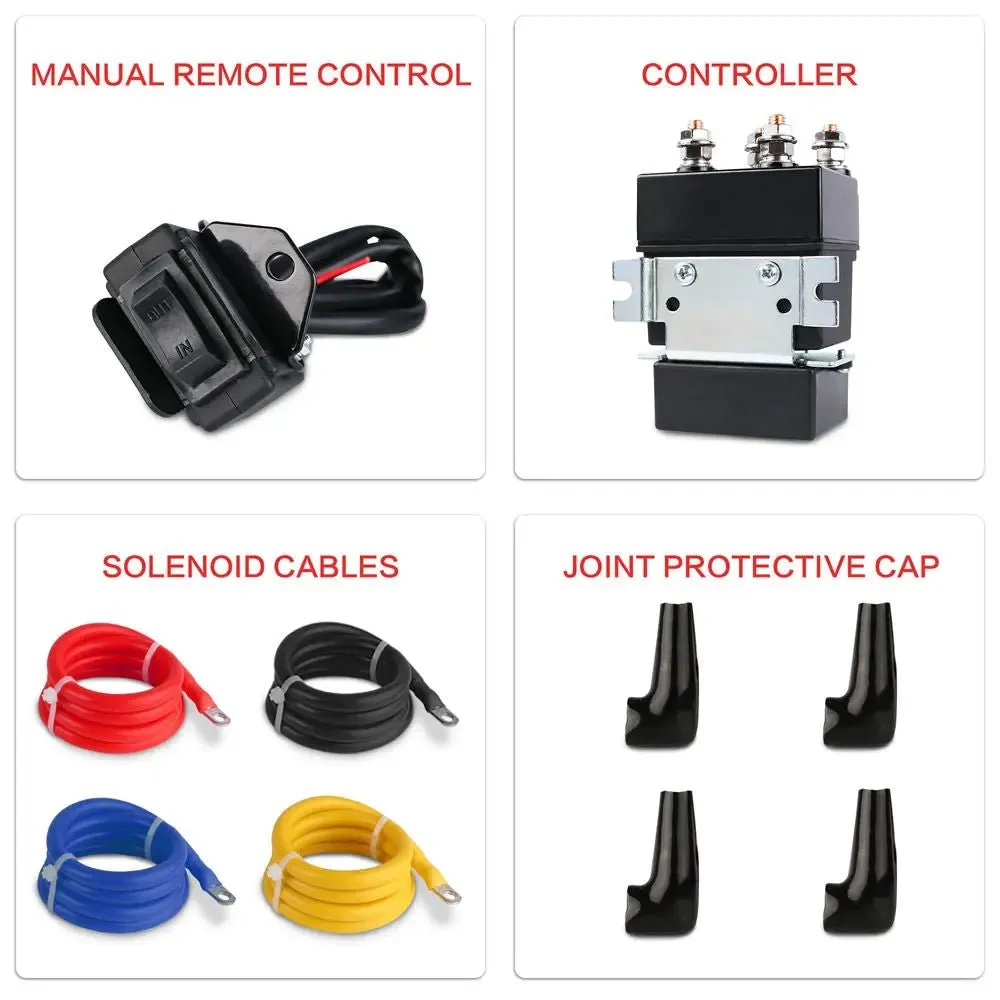

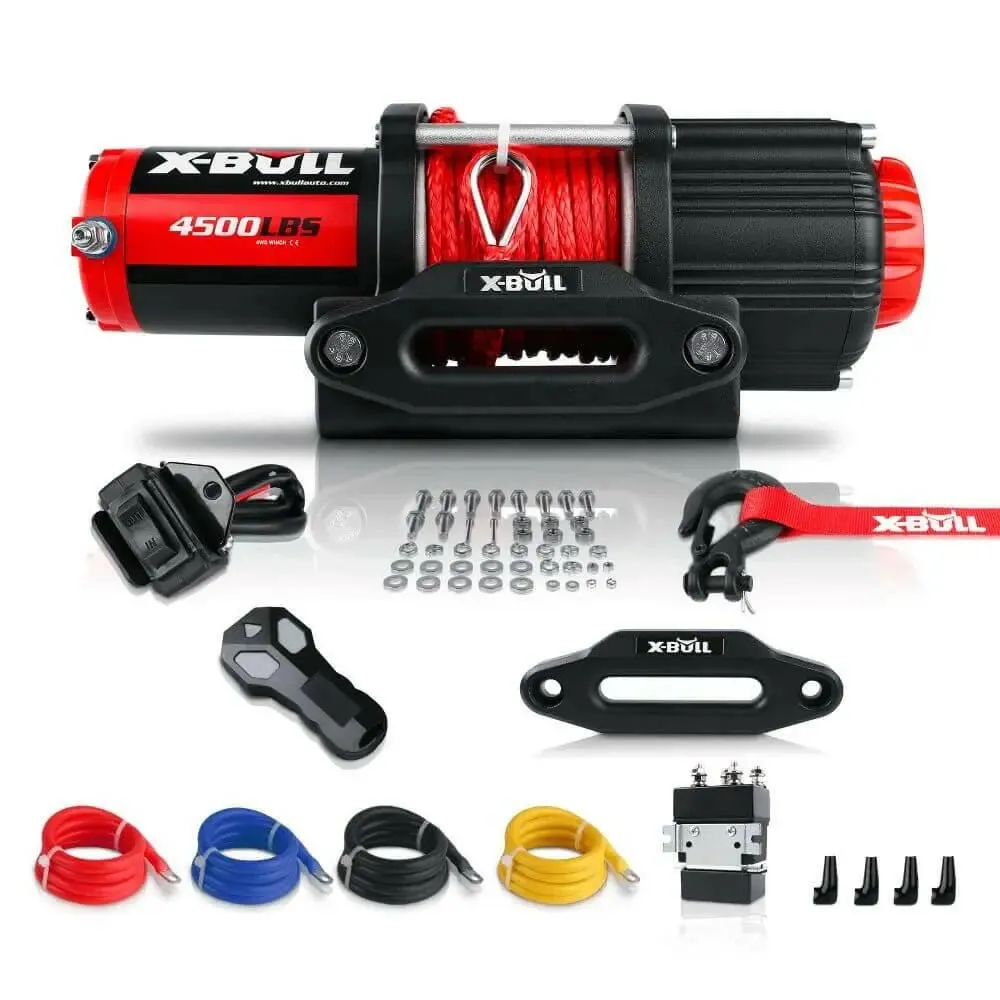

IN THE BOX
- 1 X 4500 LBS Winch
- 1 X Winch Mounting Plate
- 1 X Wire Remote Control
- 1 X Wireless Remote Control
- 1 X Aluminium Hawse Fairlead
- 1 X Controller (Solenoid Receiver)
- 4 X Solenoid Cables
- 4 X Joint Protective Caps
- 1 X Clevis Hook
- 1 X Set of Bolts
- 1 X User Manual
